Details:Application:
Transportation for long distance, high speed, large capacity and high tension conveyor.
Characteristics:
| 1.High impact resistance | 8.Fatigue resistance |
| 2.Low elongation | 9.Excellent toughness |
| 3.Corrisionproff | 10.Light weight |
| 4.Prevent flammable material | 11.Non-conducting |
| 5.Non-transtorming | 12.Impact penetration & slit resistance |
| 6.Heat resistant | 13.Good adhesion between plies and cover rubber |
| 7.Great flexibility |

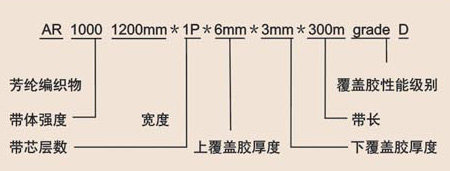

Belting commonly specitied as following pattern
Belt technical data
| Model | AR-630 | AR-800 | AR-1000 | AR-1250 | AR-1400 | AR-1600 | AR-1800 | AR-2000 | AR-2500 |
|
Warp-direction strength N/mm |
800 | 900 | 1200 | 1600 | 1600 | 1900 | 2200 | 2400 | 3000 |
|
Warp-direction strength N/mm |
150 | 180 | 180 | 180 | 180 | 180 | 1800 | 180 | 180 |
|
Belt-core thickness mm |
2.1 | 2.3 | 2.7 | 2.9 | 3.35 | 3.35 | 3.4 | 3.45 | 3.5 |
|
Upper cover glue thickness mm |
6 | 6 | 8 | 8 | 8 | 8 | 8 | 10 | 10 |
|
Lower cover glue thickness mm |
3 | 3 | 3 | 4 | 4 | 4 | 4 | 5 | 5 |
|
Thickness of belt mm |
11.1 | 11.3 | 13.7 | 15 | 15.35 | 15.35 | 15.4 | 18.45 | 18.5 |
|
10% elongation rate under constant load |
1 | 1 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
Recommend min.Pulley Dia.of conveyor
| Model | Tensile strength | Haulage drum diameter | Haulage drum diameter | Lateral drum diameter |
| AR-630 | 630 | 500 | 400 | 300 |
| AR-800 | 800 | 600 | 450 | 350 |
| AR-1000 | 1000 | 600 | 450 | 350 |
| AR-1250 | 1250 | 650 | 500 | 400 |
| AR-1400 | 1400 | 700 | 500 | 450 |
| AR-1600 | 1600 | 750 | 550 | 500 |
| AR-1800 | 1800 | 750 | 550 | 500 |
| AR-2000 | 2000 | 800 | 600 | 550 |
