Details:
|
Production Type |
TopWidth
|
Pitch Width
|
Height
|
Angle
|
Lenth Conversion
|
Length Range(inch)
|
Length Range(mm)
|
Factory Mark
|
|
Z
|
10
|
8.5
|
6
|
40
|
Li=Lw-22
|
13"-120"
|
330-3048
|
Li
|
|
A
|
13
|
11.0
|
8
|
40
|
Li=Lw-30
|
14"-394"
|
356-10008
|
Li
|
|
AB
|
15
|
12.5
|
9
|
40
|
Li=Lw-35
|
47"-394"
|
1194-10008
|
Li
|
|
B
|
17
|
14.0
|
11
|
40
|
Li=Lw-40
|
19"-600"
|
483-15240
|
Li
|
|
BC
|
20
|
17.0
|
12.5
|
40
|
Li=Lw-48
|
47"-394"
|
1194-10008
|
Li
|
|
C
|
22
|
19.0
|
14
|
40
|
Li=Lw-58
|
29"-600"
|
737-15240
|
Li
|
|
CD
|
25
|
21.0
|
16
|
40
|
Li=Lw-61
|
47"-394"
|
1194-10008
|
Li
|
|
D
|
32
|
27.0
|
19
|
40
|
Li=Lw-75
|
80"-600"
|
2032-15240
|
Li
|
|
E
|
38
|
32.0
|
23
|
40
|
Li=Lw-80
|
118"-600"
|
2997-15240
|
Li
|
|
F
|
50
|
42.5
|
30
|
40
|
Li=Lw-120
|
177"-600"
|
4500-15240
|
Li
|
FEATURES
Classical wrapped V-belts feature high strength,low protraction,small matching tolerance and a fatigue endurance limit of over 107 times
MARKING
The marking of classical wrapped V-belts represend both the inside length and pitch length of factory V-belt.The length conversion table is available for conversion between various models.

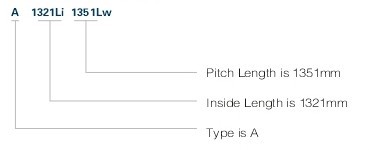

EXAMPLE OF MARK
