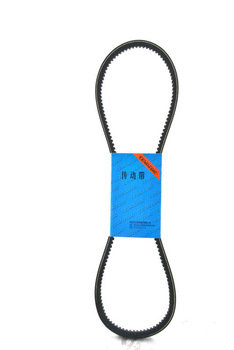

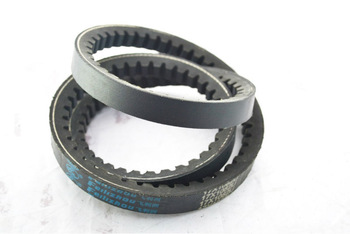

Details:
| Structure |
|
No.
|
Name
|
Function
|
Material
|
|
1
|
Top Fabric
|
Protect the lining tensile member
|
Polyester Cotton Canvas
|
|
2
|
Core Cord
|
Nuclear material to pass the dynamic force
|
Polyester
|
|
3
|
Bottom Rubber
|
Side compression resistant and section
|
CR,EPDM
|
|
4
|
Bottom Fabric
|
Absorb the impact and prevent crack of the core rubber
|
Elastic Fabric
|
| Feature |
|
Large intensity,high flexibility,good durability Special Bottom rubber used,small elongation and long service life Excellent heat-resistance,oil-proof,and wearing resistance High transmission efficiency Suitable for band pulley with minor diameter Safe performance can be guaranteed even during high-speed operation |
|
|
| Section Size of lndustrial Raw Edge V Belts |
|
Type
|
Top width mm
|
Belt Thickness mm
|
Angle㣩
|
|
HM
|
10.5
|
8.0
|
38
|
|
AX
|
13
|
8.0
|
38
|
|
BX
|
17
|
11
|
38
|
|
CX
|
22
|
14
|
38
|
|
DX
|
32
|
19
|
38
|
|
EX
|
38
|
23
|
38
|
| Section Size of Raw Edge Narrow Belts |
|
Type
|
Top width
|
Belt Thickness
|
Angle
|
|
XPZ
|
9.7
|
8.0
|
40
|
|
XPA
|
12.7
|
10
|
40
|
|
XPB
|
16.3
|
13
|
40
|
|
XPC
|
22
|
18
|
40
|
|
9NX
|
9.5
|
8
|
40
|
|
15NX
|
16
|
13.5
|
40
|
|
25NX
|
25.4
|
23
|
40
|
| Section Size of Raw Edge V Belts for Automobile |
|
Type
|
Top width
|
Wrapped V belt
|
Raw edge V belt
|
REF
|
REC
|
Angle
|
|
AV-10/9.5
|
10.0
|
8.0
|
7.5
|
7.5
|
8.0
|
40
|
|
AV-13/12.5
|
13.0
|
10.0
|
8.5
|
8.5
|
9.0
|
40
|
|
AV-15
|
15.0
|
9.0
|
-
|
-
|
-
|
40
|
|
AV-17
|
16.5
|
10.5
|
9.5
|
9.5
|
11.0
|
40
|
|
AV-22
|
22.0
|
14.0
|
-
|
-
|
13.0
|
40
|
HM(X9.5)
AX(X13)
BX(X17)
CX(X22)
DX(X32)
XPZ(3VX)
XPA
XPB(5VX)
XPC
3(9NX)
5VX(15NX)
8VX(25NX)
AV9.5
AV13
AV15
AV17
AV22
