Details:| Structure |
|
No.
|
Name
|
Function
|
Material
|
|
1
|
Top Fabric
|
Protect the lining tensile member
|
Polyester Cotton Canvas
|
|
2
|
Buffer Rubber
|
Suport adn protect the adhesive
force of the tensile member |
CR, EPDM
|
|
3
|
Tensile Member
|
Critical material to pass the dynamic force
|
Polyester, Nylon
|
|
4
|
Bottom Rubber
|
Maintain the shape of the rubber and
improve its side compression performance |
CR, EPDM
|
| Feature |
|
Wide breadth but thin belt, excellent elastic and flexural property High transmission efficeincy under the operating environment of high-speed rotation, reverse flexure, small band pulley, etc. Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation Excellent heat-resistance, oil-proof, and wearing resistance Less slip while large transmission effect during the process of operation Less noise during the process of operation |
 |

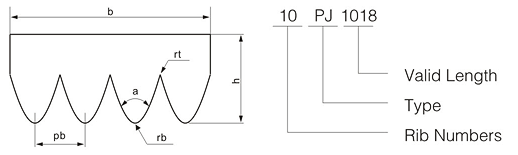

| Size of Section |
|
Type
|
Ribsection(mm)
|
Angle of rib(o)
|
Belt Thickness(mm)
|
Rib Numbers
|
Length range
|
|
PH
|
1.6
|
40
|
3
|
3-54
|
540-1270
|
|
PJ
|
2.34
|
40
|
4
|
3-36
|
540-18880
|
|
PK
|
3.56
|
40
|
4-6
|
3-23
|
600-2400
|
|
PL
|
4.7
|
40
|
10
|
3-16
|
900-3000
|
|
PM
|
9.4
|
40
|
17
|
3-8
|
1500-3000
|
Type:PJ 203-2540
Type:PK 203-2540
Type:PL 203-2540
Type:PM 2286-15265
